STEP 3:  INSTALL the Department of Defense (DoD) CERTIFICATES

Installation Steps

Step 1: Obtain a CAC Reader
Step 2: CAC Reader driver
Step 3: DoD Certificates
Step 4: ActivClient
Step 4a: Update ActivClient
Step 5: IE adjustments
Log into a CAC enabled website now





InstallRoot automates the install of the DoD certificates onto your Windows computer



To access DoD websites from your computer, you need these certificates on your computer.  You may need to reinstall the certificates if the CAC enabled web site won't load, the website you are visiting is prompting you with the message there is a problem with the website's Security Certificate / site is not trusted, you have received a new CAC, or your DoD website worked up until recently and doesn't now.



 Apple computer users follow these instructions



Windows RT users follow these instructions



Chromebook users follow these instructions



InstallRoot is created by DISA for Windows computers, if you have any problems with this file, please contact them

NOTE: If you do not want to install the InstallRoot program, you can install the certificates manually by, following these instructions.



Windows users, Download InstallRoot 5.2 from:

MilitaryCAC (.msi version) (26.4 MB),

MilitaryCAC (.zip version) (25.4 MB), or

DISA (.msi version) (26.4 MB)



(It is the same file [except for .zip version] from 3 different web locations, in the event one of the links don't work)

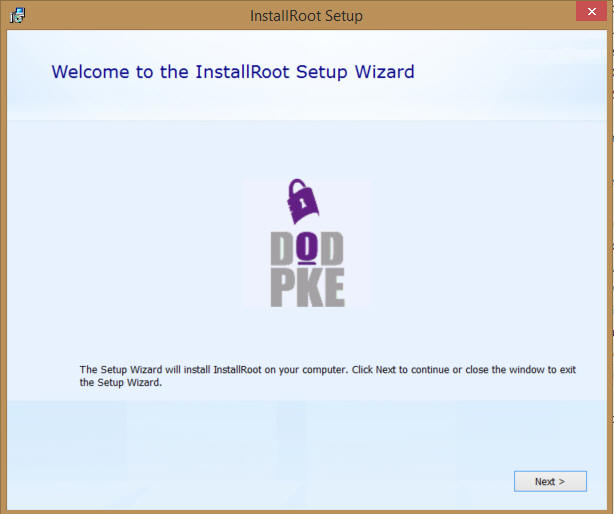

WelcomeToTheInstallRootSetupWizard

Select Next >

.

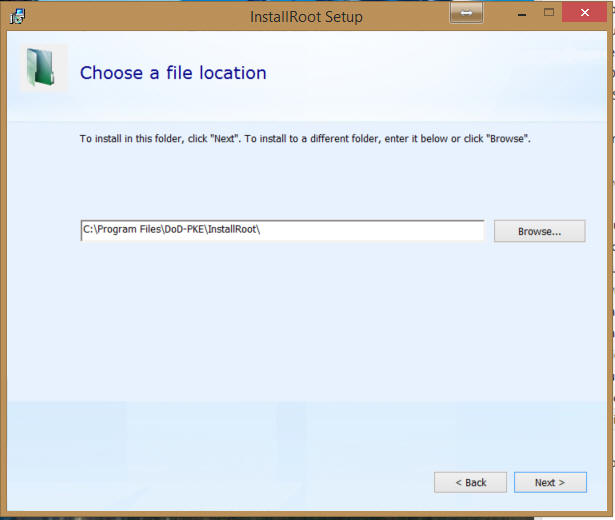

ChooseAFileLocation

Leave the default installation location, then select Next >

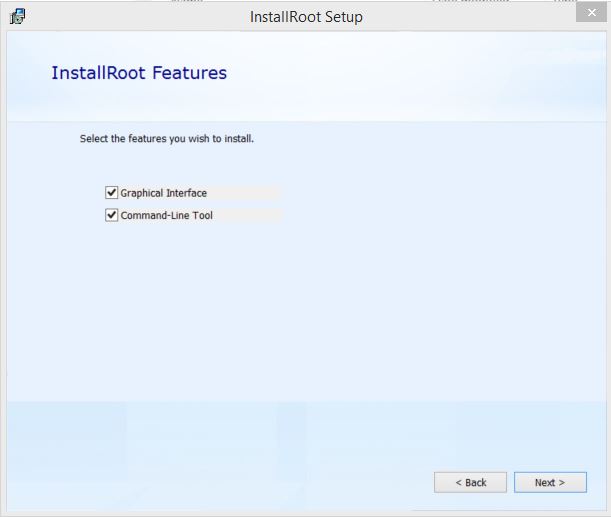

InstallRootFeatures

Select Next >

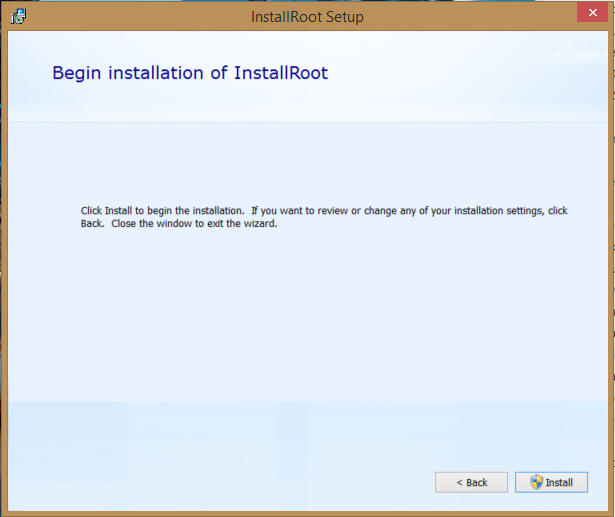

BeginInstallationOfInstallRoot

Select Install

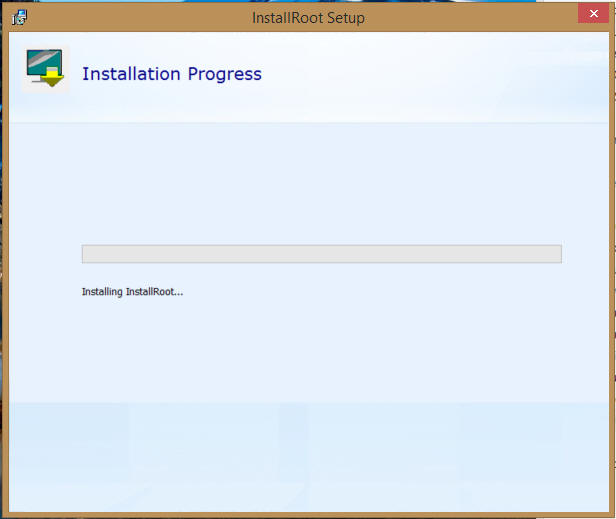

InstallationProgress

Wait for it

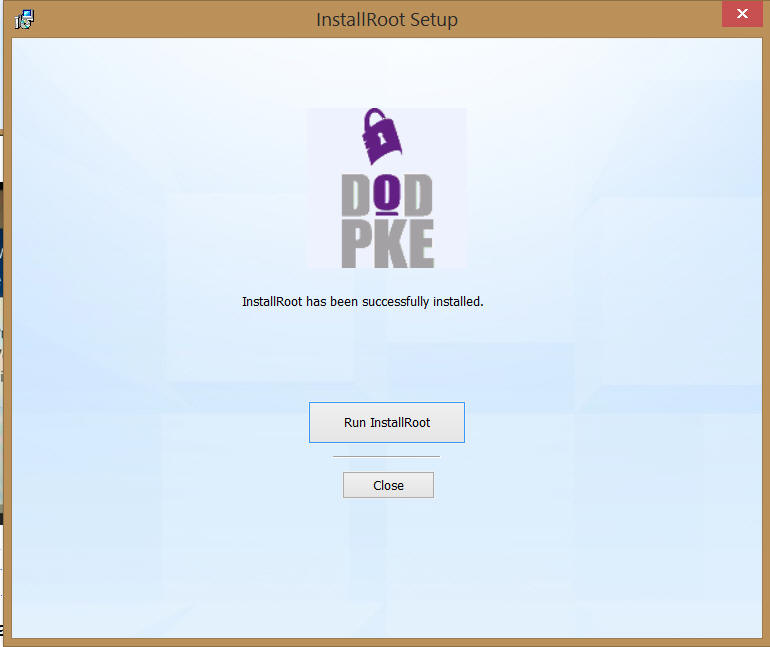

.InstallRootHasBeenSuccessfullyInstalled

Select Run InstallRoot

.

.

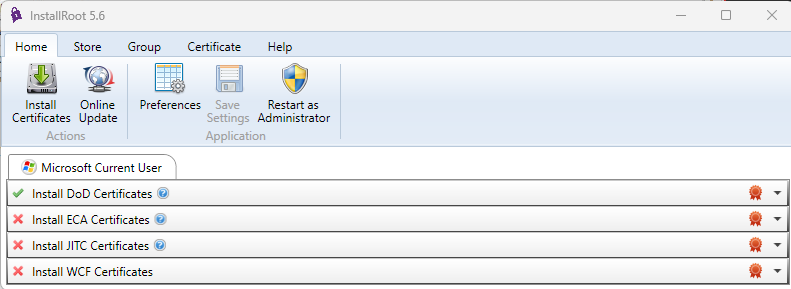

InstallRoot 4.1

Click Install Certificates

If you have Firefox installed, you may see 2 or 3 tabs



New imageNOTE: I have one report that a person had to select Restart as Administrator.  This was the first and only person in the several years this program has been in existence that I have heard this.



InstallRoot not updating was fixed in InstallRoot 5.2

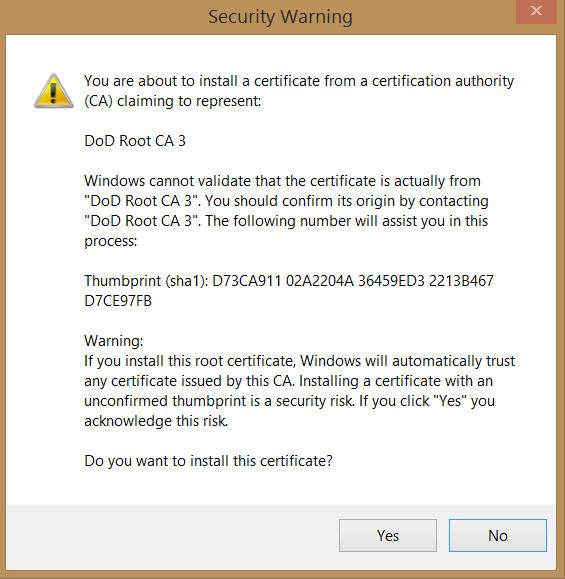

Security Warning

Select Yes, (this screen may show 2 - 3 times) as it is installing the DoD Root CA 2, 3, 4, & 5 certificates

.

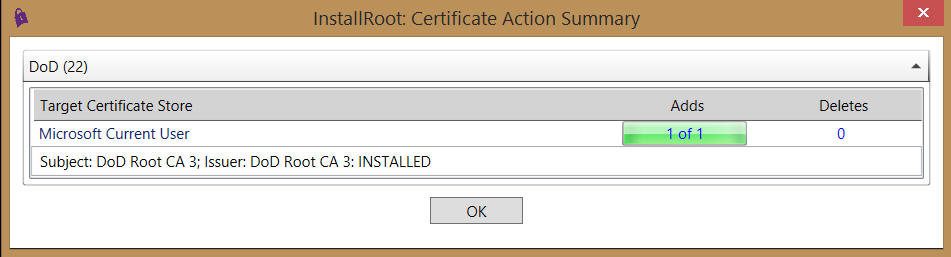

Select OK (your number of Adds will vary)



.

How to verify you have the certificates installed



Internet Options

Open Internet Explorer, Select Tools (Gear), Internet Options

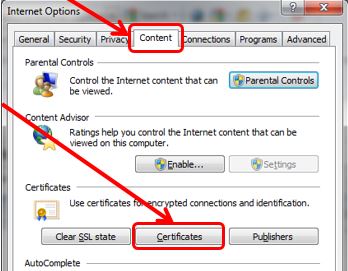

Content-Certificats

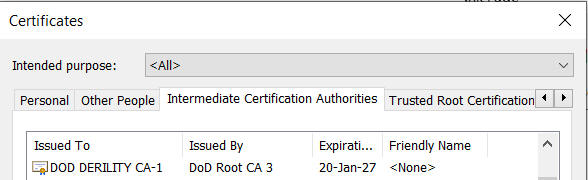

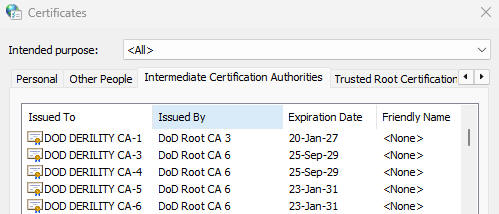

Select Content (tab), Certificates (button)



DOD CA 31 & 32

Intermediate Certification Authorities (tab) scroll down the Issued To (column) to the letters DOD to verify you have:

DOD CA-31 and DOD CA-32



Email 31 - 34

DOD EMAIL CA-31 through DOD EMAIL CA-34



Email 39-44

 DOD EMAIL CA-39 through DOD EMAIL CA-44



Email 49-52

 DOD EMAIL CA-49 through DOD EMAIL CA-52

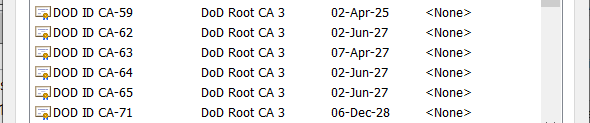

Dod ID CA 33-34

 DOD ID CA-33 through DOD ID CA-34



ID 39-44

DOD ID CA-39 through DOD ID CA-44



DoDID 49-52

DOD ID CA-49 through DOD ID CA-52



ID SW 35-38

DOD ID SW CA-35 through DOD ID SW CA-38



ID SW 45-48

DOD ID SW CA-45 through DOD ID SW CA-48



and

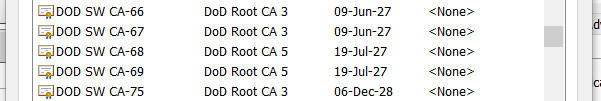

DoDSWCA53-58

DOD SW CA-53 through DOD SW CA-58





also verify the Root certificates installed (as sometimes the Antivirus program doesn't allow these to be installed)

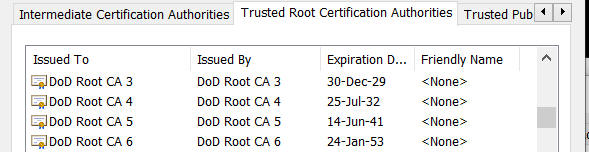

Root 2-5

Open the Trusted Root Certification Authorities (tab) verify you have:

DoD Root CA 2 through DoD Root CA 5



 flag bar

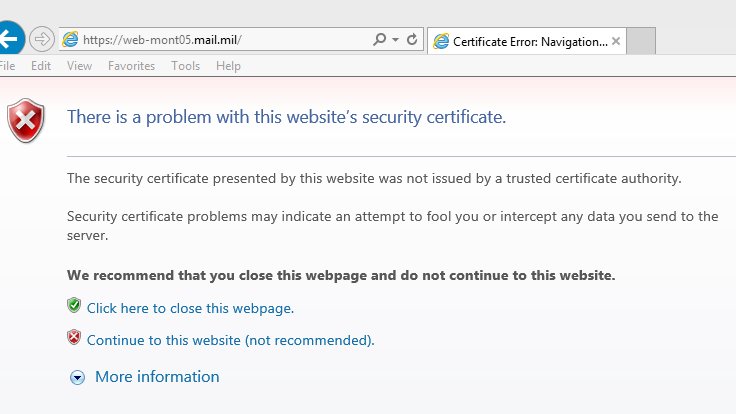

If you see "There is a problem with this website's security certificate" after installing the DoD InstallRoot file or the Red Certificate error below, follow this guide

Security Error

Certificate Error





PROCEED TO STEP 4 - INSTALL ACTIVCLIENT





The Cross Cert Remover tool is "supposed" to be an automated way of removing some certificates that cause access problems.  From what I've experienced, you still need to follow my guide [slides 15&16] and manually remove certificates the Cross Cert Removal Tools fails to remove.  Feel free to use if you want to waste your time.



You can install both the InstallRoot and the Cross Cert Removal tool in one single file which was created by NETCOM (Army Network Enterprise Technology COMmand)

This file is created for Home Users ONLY, you can download it from:



https://militarycac.com/CACDrivers/HomeUserCertTool_V04.zip



flag bar



Information:
A certificate is a digital document providing the identity of a Web site or individuals.  DoD Web sites use a certificate to identify themselves to their users and to enable secure connections.  If you are receiving a warning that a site is untrusted / insecure, you will need to install the "DoD Certificates."  In order to access sites enabled with a DoD PKI certificate without being prompted to accept the DoD Certificate chain at each log on [like Firefox and Safari do], people using Internet Explorer and Chrome should install the DoD certificates.  These are separate from the personal certificates that are on your CAC, but they are related.





Root Certificates



How can you (or your web server) trust the identity of someone over the network?  An infrastructure of trusted third parties has been put in place to distribute trust between end-users.  This infrastructure verifies that we are who we say we are.  If we trust the DoD PKI infrastructure, then the infrastructure can vouch for us to trust others that have certificates issued from the DoD PKI.

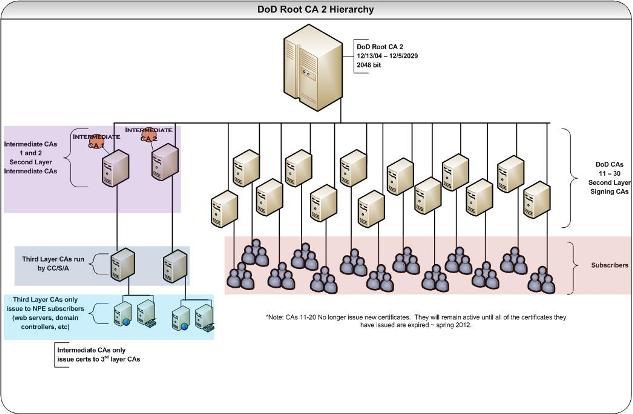

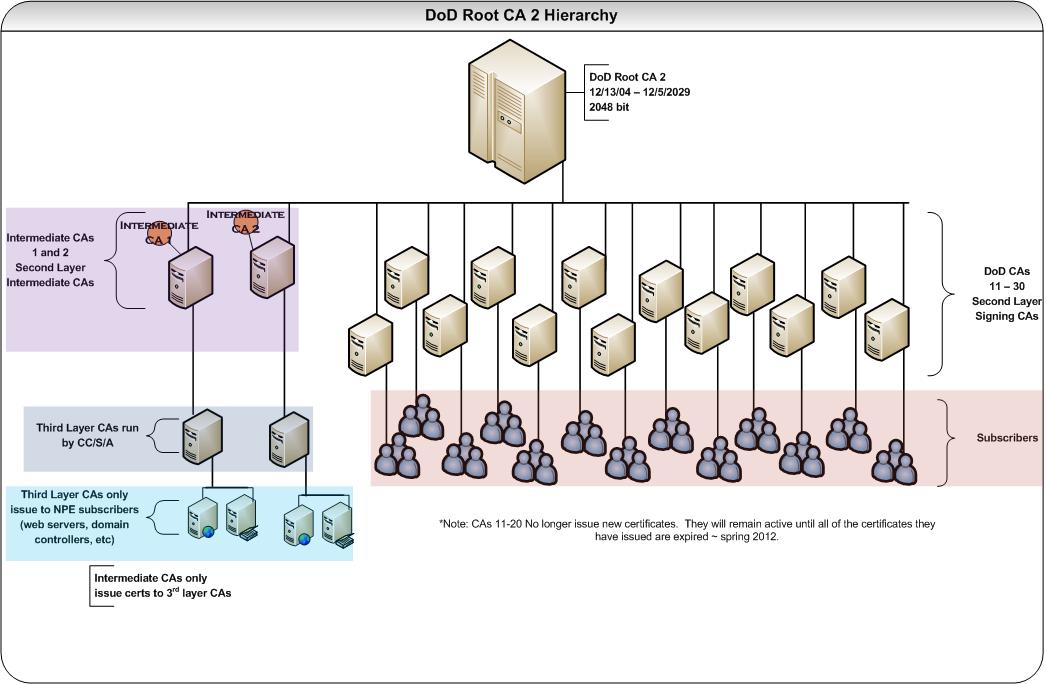

DoD Root Hierarchy image

Click to see larger image

.

The DoD PKI Infrastructure is comprised of two Root Certification Authorities and a number of Intermediate Authorities.  If all of the DoD root certificates are not installed on your computer, various applications will not be able to trust all DoD PKI certificates.

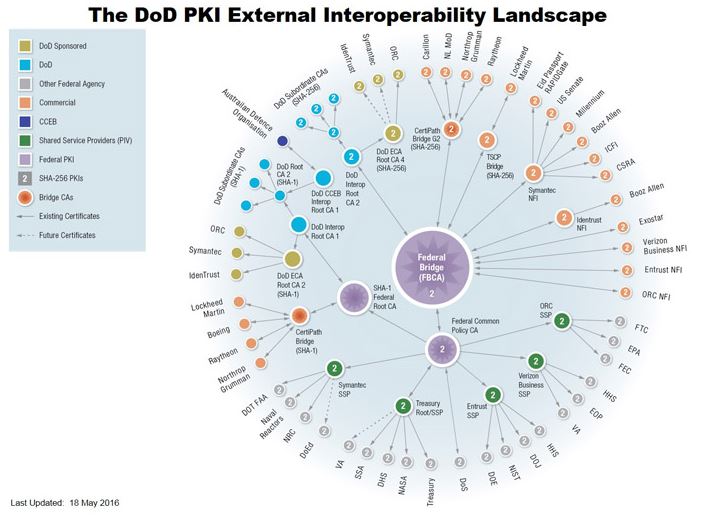

Fed Cross Cert image

Click to see larger image

.

More information about this image can be found here:  https://iase.disa.mil/pki-pke/interoperability/Pages/index.aspx
